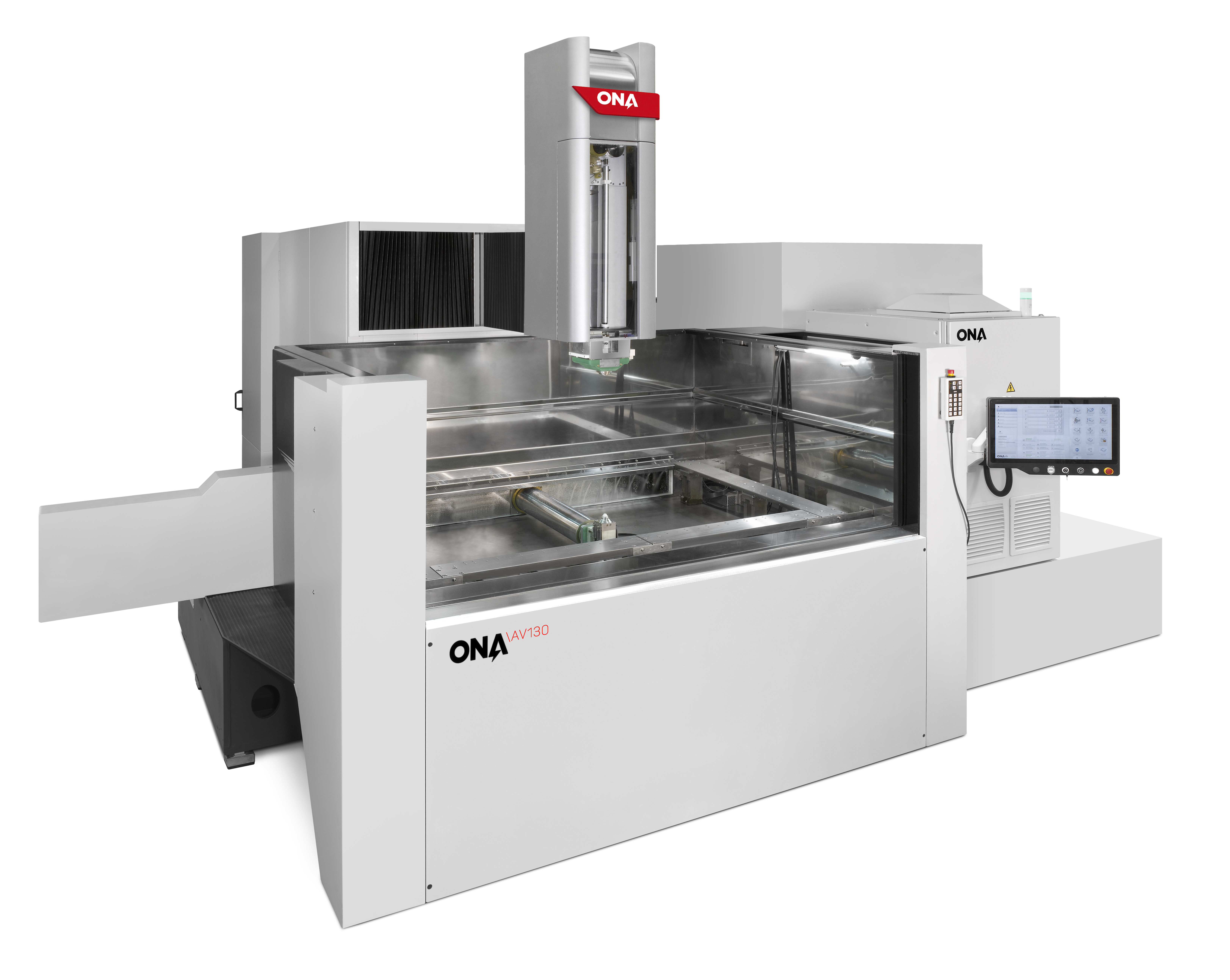

ONA AV130 Specifications
| X-axis travel | 2000 mm | 78.7 in | |
| Y-axis travel | 1000 / 1300 mm | 39.4 / 51.2 in | |
| Z-axis travel | 500 / 600 / 700 / 800 mm | 19.7 / 23.6 / 27.5 / 31.5 in | |
| Worktank internal dimensions (*): | Large | 2500 mm | 98.4 in |
| Wide | 1600 mm | 63.0 in | |
| High | 600 mm | 23.6 in | |
| Allowable weight on table | 10000 kg | 22000 Ibs | |
| U/V-axes travel | 500 x 500 mm | 19.7 x 19.7 in | |
| Maximum taper angle | +/- 30º / 400 mm | +/- 30º / 15.75 in | |
| Wire diameter range | 0.20 / 0.33 mm | 0.008 – 0.012 in | |
(*) Ask details for the different possible configurations. The indicated data correspond to the smaller machine configuration of each model.
Benefits of AV Technology
- The numerical control, designed on the concept of usability, has: a 23” touch interface, Intuitive and visually friendly menus, Applications represented by icons, Real-time information, greater control of the process..
- The optimisation of work times is another of the main functions of the AV machines. The system allows you to view the list of jobs (JOBs list).
- The new interface displays the workpiece in 3D and allows the operator to rotate and move it according to their requirements with a simple tap on the screen thanks to its tactile technology.
- The new generator enables cutting at high speeds and guarantees great efficiency of the machines. Savings of 30% and a 450mm2/min (0.33 wire(XCC)) speed..
- ONA Script programming + Medition in-process option in order to have a total control of the workpiece positioning.
