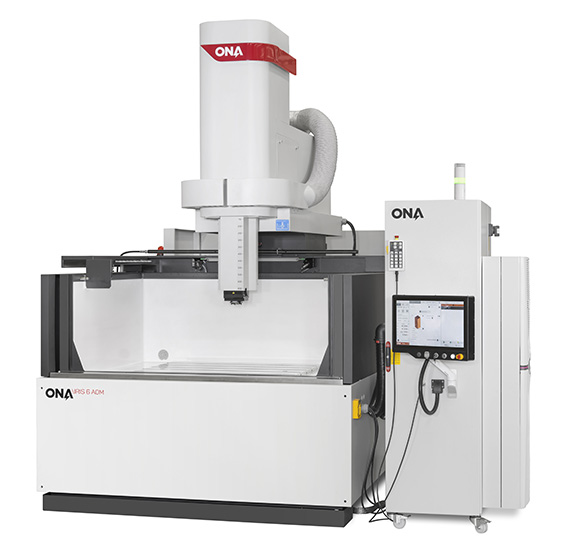

\ DIE – SINKING EDM MACHINES ONA IRIS 6 A0M

ONA IRIS

A new level of connectivity and digitization that allows you to simulate any project and reduce the possibility of error thanks to its powerful graphic engine, capable of converting your needs into precise, profitable and, above all, successful results.

Connect. Simulate. Win.

ONA IRIS 6 A0M Specifications

X-axis travel (individual) 1.000 mm 39.37 in
Y-axis travel 750 mm 29.52 in
Travel of the electrode holder 650 mm 25.59 in
Max. distance between table and head 1.000 mm 18.5 in
Worktank internal dimensions Length 1.800 mm 70.86 in
Width 1.300 mm 51.18 in
Height 700 mm 27.55 in
Work table dimension 1.200 x 1.000 mm 47.24 x 39.37 in
Allowable weight on the table 5.000 kg 11023 Ibs
Type of work tank Fixed Fixed
Maximum electrode weight 300 kg 440 Ibs
Minimum roughness 0,08 – 0,1 µm Ra 0,08 – 0,1 µm Ra
Intensity of the generator 100|200|400 A 100|200|400 A

Benefits of ONA IRIS Technology

  • A 100% digital generator totally configurable and programmable.
  • Savings in electrodes, wear is reduced up to 500%. The generator optimises the erosion process and adapts it to the discharge conditions of each moment.
  • Full digital adjustment of eroding spark up to 30 different parameters allows optimizing erosion to its best.
  • Unique technological innovation. Generator 30% more powerful than the rest of the market. It is capable of reaching up to 400 A in intensity.
  • Powerful control with up to 8 simmultaeously interpolating axes and volumetric compensation in the entire work area.

APLICATIONS

  • AERONAUTICS
  • SPEAKER
  • CAMERA MOLDS
  • HOMOGENEOUS SURFACE
